630g / 1.4lbs
173 x 143 x 75mm
6.8" x 5.6" x 3.0"
1.27mm Saw Blade Compatibility
*Available for 1.37mm compatibility upon request
8mm, 9mm, and 10mm
adjustable fixed stylus
Clamping range
20mm-55mm
Medial/Lateral Clamping
Patella Instruments

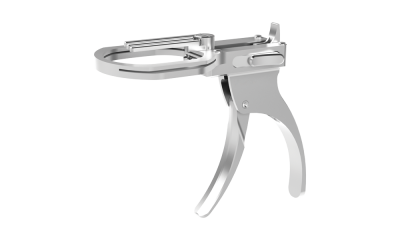

Premium Patella Saw Guide
The Enztec Premium Patella Saw Guide allows medial-lateral patella clamping, protecting the patella tendon.
Featuring an ergonomic pistol grip the Enztec Premium Patella Saw Guide provides excellent stability and control during patella resection giving you confidence when making your cuts.
Enquire nowThe Premium Patella Saw Guide is available with 9mm or 10mm resection heights and removable shims, putting control in your surgeon's hands. The tooth profile provides excellent patella engagement and the dual lock buttons to prevent accidental release.
Loved by surgeons worldwide, you can rely on the Enztec Premium Patella Saw Guide to keep you in control.
Available in three variants: 9mm Resection Height, 10mm Resection Height, 8-10mm Fixed Stylus Resection Height
- Ergonomic pistol-grip
- Available with 9mm or 10mm standard resection heights

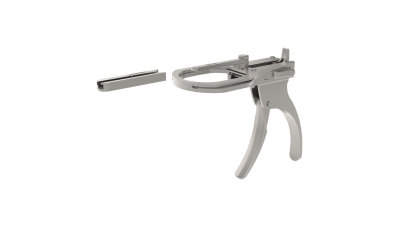

- Three shims (-1mm, -2mm, -3mm or -4mm) for resection height adjustment

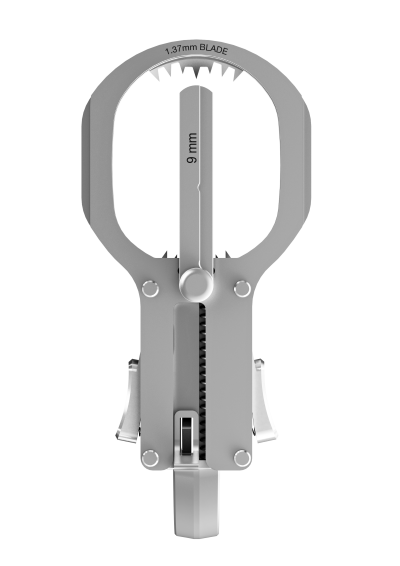

- Wide-excursion, dual-sided saw slot for use with a 1.27mm or 1.37mm saw blade
- Rapid clamping and locking mechanism
- Easy to clean
- Materials: Stainless Steel
- Weight: 630g / 1.4lbs
- Dimensions: 173 x 143 x 75mm / 6.8 x 5.6 x 3.0in
- Add your logo: available
Enztec is an MDR-certified, ISO13485 manufacturer
- Compatible with any implant system

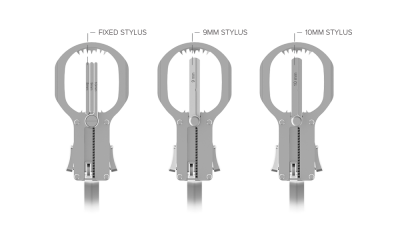

Compare the Range
Premium Fixed Stylus
Premium 9mm Stylus
630g / 1.4lbs
173 x 143 x 75mm
6.8" x 5.6" x 3.0"
1.27mm or 1.37mm
Saw Blade Compatibility
9mm stylus compatible with
removable shims
(-1mm, -2mm, -3mm or -4mm)
Clamping range
20mm-55mm
Medial/Lateral Clamping
Premium 10mm Stylus
630g / 1.4lbs
173 x 143 x 75mm
6.8" x 5.6" x 3.0"
1.27mm or 1.37mm
Saw Blade Compatibility
10mm stylus compatible with
removable shims
(-1mm, -2mm, -3mm or -4mm)
Clamping range
20mm-55mm
Medial/Lateral Clamping

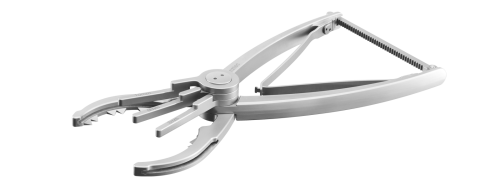

Classic Fixed Stylus
370g / 0.8lbs
230mm / 9"
1.27mm Saw Blade Compatibility
*Available for 1.37mm compatibility upon request
8mm, 9mm, and 10mm
adjustable fixed stylus
Clamping range of
25mm-55mm
Superior/Inferior Clamping

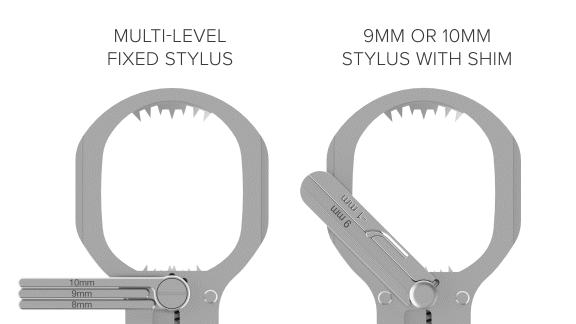

Resection Heights

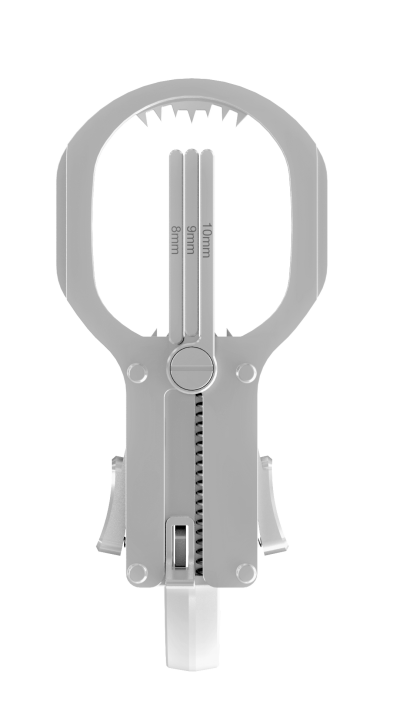

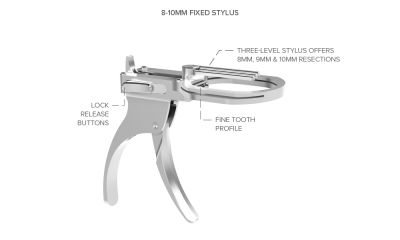

Integrated multi-level fixed stylus offers 8 mm, 9 mm, and 10 mm resection heights, enabling fast, precise adjustments.

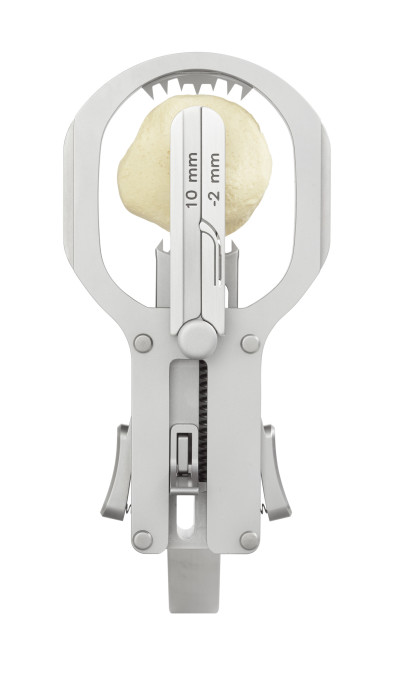

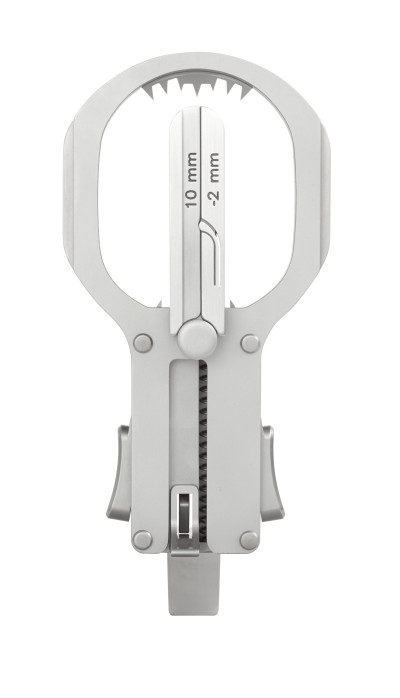

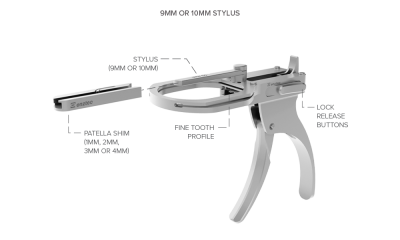

9 mm / 10 mm Stylus with Shims: Integrated 9 mm or 10 mm stylus with four removable shims (-1 mm, -2 mm, -3 mm, -4 mm) for customisable resection heights.
Clamping Mechanism

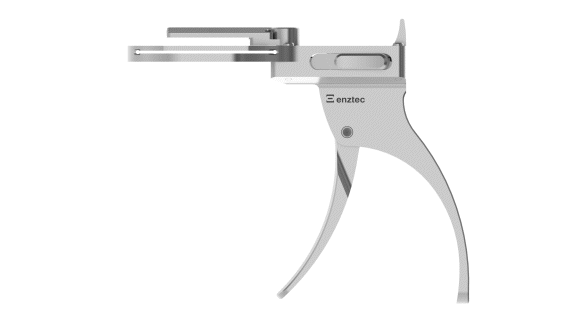

The ergonomic pistol-grip handle allows controlled medial-lateral clamping while protecting the patella tendon.
The ratcheting mechanism ensures precise, stable clamping, and integrated lock-release buttons enable easy release and quick disconnection.

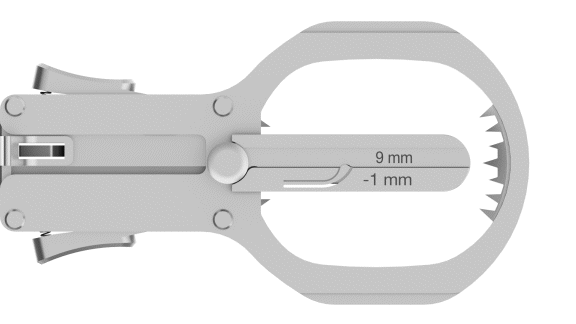

Clamping Range
With 20–55 mm of clamping capacity, surgeons can accommodate a range of patella sizes.
The Premium Patella Saw Guide clamps the patella on the medial-lateral margins, minimising potential damage to the patella tendon.

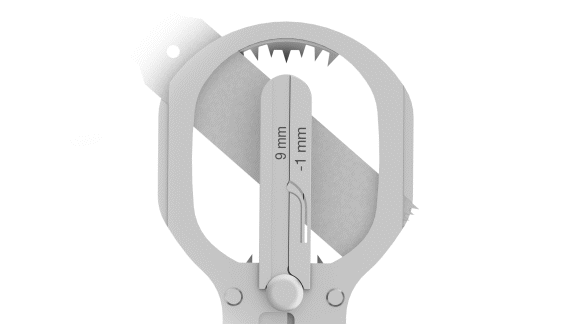

Cutting Range
Available in two versions to accommodate either a 1.27 mm or a 1.37 mm saw blade, the wide-excursion, dual-sided slot provides a controlled cutting area and greater access to all surfaces of the patella.
