Overview
140g / 0.3lbs
125 mm x 25 mm
4.9" x 1.0"
Measurement range
of 100mm
Knee Alignment

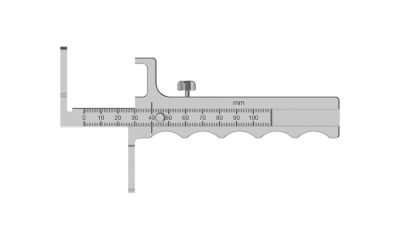

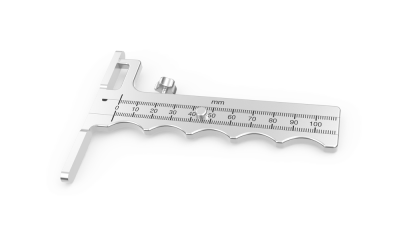

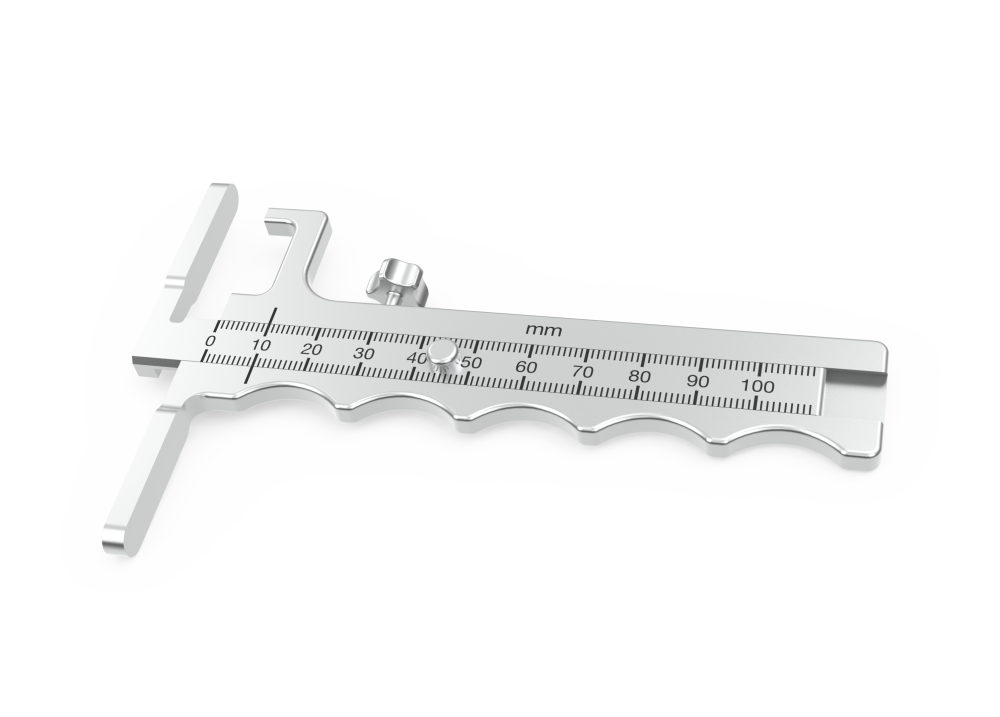

Kinematic Alignment Caliper
The Enztec Kinematic Alignment Caliper ensures precise, reliable measurements from 0mm to 100mm.
Ergonomically designed for a superior grip, the caliper’s three jaws effortlessly gauge critical parameters with ease, a raised button facilitates quick and precise measurements and a lock knob secures accurate measurements.
Enquire nowThoughtfully engineered for a range of applications, the Enztec Kinematic Alignment Caliper features three measuring jaws and a sliding scale from 0mm to 100mm, making it ideal for tasks such as measuring the thickness of resected bone or natural anterior-posterior offset.
Its ergonomic design ensures a superior grip, while a raised button facilitates quick, one-handed measurements and a lock knob secures the caliper in place for a stable, reliable reference.
- Ergonomic shaping for a superior grip
- Linear sliding scale for a range of applications (0mm-100mm), with 1mm increments
- Simple, intuitive lock knob to secure the measured position
- Raised button profile to provide grip of the sliding body
- Measurement tolerance ±1.0mm
- Materials: Stainless Steel
- Weight: 140g/0.3lbs
- Dimensions:
- Length: 125mm/4.9in
- Width: 25mm / 1.0in
- CE Marked, FDA Registered
- Add your logo: available
Enztec is an MDR-certified, ISO13485 manufacturer
- Can be used with any implant system

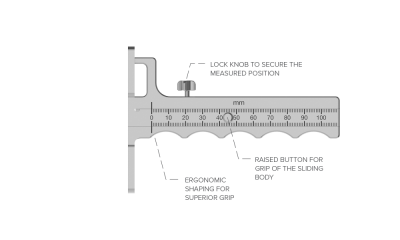

Lock Knob
to secure the measured position
Raised Button
for easy grip of the sliding body
Ergonomic Shaping
for superior grip of the caliper
