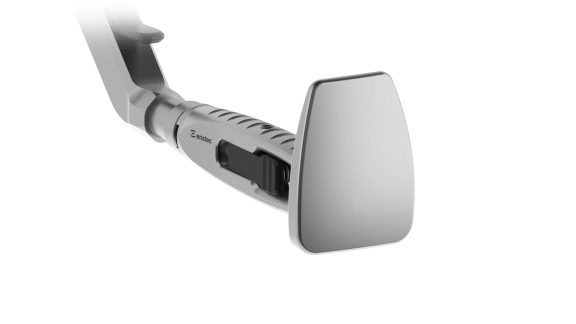

The Modular OCI X/XR is designed without an integrated handle and features an IMT-style connection that allows either a powered impaction device or the Enztec Modular Anvil to attach interchangeably. This enables seamless switching between manual and powered impaction using the same device. Conversely, the OCI X/XR can only be used for conventional impaction.

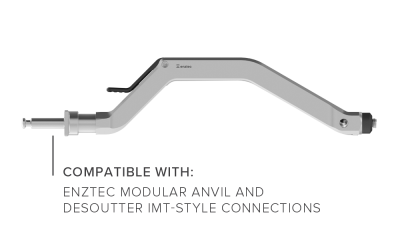

The Modular OCI X/XR is compatible with the deSoutter OrthoDrive, or any standard IMT connection for powered impaction.

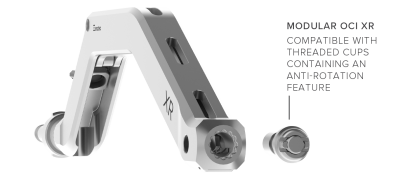

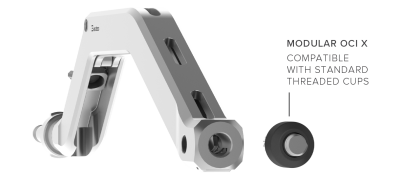

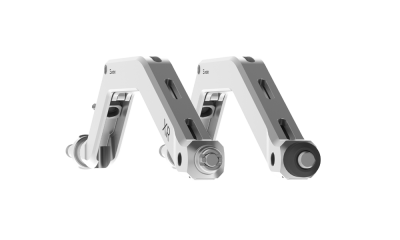

The Modular OCI X is compatible with standard threaded cups, whereas the Modular OCI XR is designed for cups with an anti-rotation feature in the pole. Both devices function very similarly, allowing the user to seamlessly visualise cup position at any time during impaction. The Modular OCI XR has additional anti-rotation functionality, for those cups that allow it.

The Modular OCI X/XR is compatible with a wide range of acetabular cups such as Smith + Nephew R3 and REDAPT, DePuy Pinnacle and Emphasys, Stryker Trident, Signature Logical G, Corin Trinity and more. Additionally, we can adapt it to meet any cup thread.

The Modular OCI X/XR offers a 55mm (2.2inch) offset, providing ample clearance of bone and soft tissue.

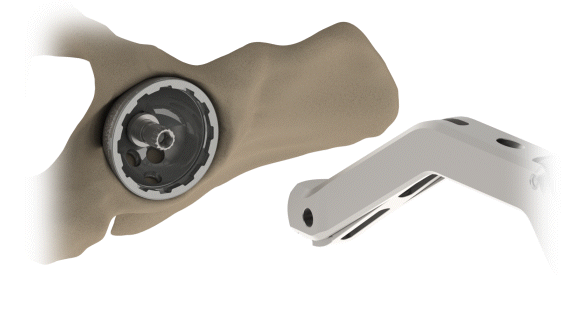

The Trinket is the threaded component of the Modular Offset Cup Impactor that connects between the handle and your acetabular cup. Every acetabular cup has a different thread length and profile, so we have a library of trinkets to fit different cups.

In order to ensure compatibility with your cup we need to receive models and drawings of your cup. In some instances, we may ask for a sample cup to facilitate design and testing.

Yes, we can add a small customer logo to the trinket

The Modular OCI X/XR has a removable trinket and hex driver for cleaning. The body incorporates flushing holes to facilitate removal of contaminants.

The Modular OCI X/XR weighs 722g / (1.6lbs). This weight has been minimised as much as possible while still ensuring stability and accuracy during impaction.

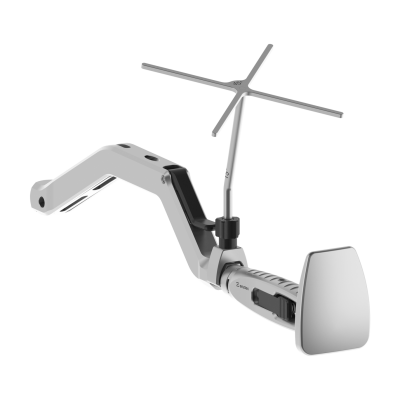

Yes, we offer supine and lateral alignment arrays that securely connect to the handle with a simple screw down mechanism.

Yes, we do have some evaluation units available. Please complete the enquiry form on this page to request a loan evaluation.

Enztec is an MDR-certified, ISO 13485 manufacturer, compliant with CE (MDR), FDA, and TGA regulations, enabling sales in multiple international markets. Namely we can currently sell the Modular OCI X/XR directly into Australia, Austria, Belgium, Bulgaria, Croatia, Republic of Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, New Zealand, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, United Kingdom and United States. For some of these markets the Customer will need to act as the Importer and/or have their in-market regulatory teams complete country-specific registrations. We can also support sales into other countries through our Customers' in-market regulatory teams.

To place an order, or to find out more about this product, contact Enztec through the website enquiry form further down this page. 

Once your order is placed, an Enztec team member will provide you with a dispatch date. Limited stock is held, with most trinkets made to order, so depending on the quantity ordered, we would aim for dispatch within 4-8 weeks of receiving your order.  Delivery times vary based on your location, but shipping typically takes between 2 days and 1 week.
